Asus ROG CROSSHAIR X670E GENE

retro

Asus ROG CROSSHAIR X670E GENE

Photos non contractuelles.
Photo Non Disponible

0

/10

Indice de réparabilité

Marque : Asus
Référence constructeur : 00401139

0€ d'éco-part DEEE

Caractéristiques Principales

  • Utilisation : Gamer

  • Utilisation : Pro

  • Utilisation : Multimédia

  • Utilisation : Art Graphique

  • Socket : AMD AM5

  • Chipset : AMD X670

  • Format Carte-mère : Micro-ATX

  • Connectivité : Wifi

  • Nombre de barrettes RAM : 2

  • Norme Mémoire RAM : DDR5

Voir plus de caractéristiques

Dispo. Web

Ce produit n'est plus disponible

Livraison chez vous

Dispo. Magasin

Non disponible

  • Date d'extinction : 25/05/2023
  • Dernier prix de vente : 539€99

Asus ROG CROSSHAIR X670E GENE



Si vous êtes à la recherche d'une carte mère performante, la Asus ROG CROSSHAIR X670E GENE est faite pour vous. Cette carte mère est équipée d'un processeur AMD Ryzen 5000 et 6000 Series, de 4 emplacements DDR4 pouvant accueillir jusqu'à 128 Go de mémoire vive et de deux ports NVMe M.2 pour des disques SSD ultra-rapides. Tout cela vous garantit des performances élevées pour vos applications les plus exigeantes, comme les jeux les plus modernes ou le montage vidéo 4K.


La qualité de fabrication de la carte mère Asus ROG CROSSHAIR X670E GENE


La Asus ROG CROSSHAIR X670E GENE est également une carte mère de qualité supérieure. Elle est équipée d'un refroidisseur VRM en aluminium nickelé qui assure une dissipation thermique efficace, ainsi que d'une conception de circuit imprimé en 6 couches pour une stabilité et une fiabilité maximale. De plus, la carte mère est équipée d'options de personnalisation LED Aura Sync pour donner une touche de personnalité à la configuration de votre ordinateur.

Carte mère Asus ROG CROSSHAIR X670E GENE - X670/AM5/DDR5/mATX Carte mère Asus ROG CROSSHAIR X670E GENE - X670/AM5/DDR5/mATX


La carte mère Asus ROG CROSSHAIR X670E GENE : une connectivité complète pour vos périphériques


La Asus ROG CROSSHAIR X670E GENE est équipée d'une connectivité complète pour vos périphériques. Elle dispose de ports USB 3.2 Gen 2x2 pour des transferts de données ultra-rapides, de connexions Ethernet à 10 Gbit/s pour une connexion internet rapide et stable, ainsi que de connexions Wi-Fi 6 pour une connectivité sans fil ultra-rapide. De plus, la carte mère est équipée d'un son haute résolution pour une expérience sonore immersive. Tout cela assure une expérience utilisateur de qualité supérieure lors de l'utilisation de votre ordinateur équipé de la Asus ROG CROSSHAIR X670E GENE.

AFFICHER LA SUITE
MASQUER LA SUITE
Specifications
CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  * Refer to www.asus.com for CPU support list.
Chipset AMD X670
Memory 2 x DIMM, Max. 64GB, DDR5
  6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD EXTended Profiles for Overclocking (EXPO™)
  OptiMem II
  * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics 2 x USB4® ports support USB Type-C® display outputs*
  * VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot
  AMD X670 Chipset
  1 x PCIe 4.0 x1 slot
  * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  GEN-Z.2_1 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4)**
  AMD X670 Chipset
  GEN-Z.2_2 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
  4 x SATA 6Gb/s ports
  *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
  **Performance may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support site.
Ethernet 1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.2
  * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB Rear USB (Total 10 ports)
  2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
  6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
  1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  *To support 60W, please install the power cable to the 6-pin PCIe Graphics
  Card connector or else only 27W can be supported.
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  Impedance sense for front and rear headphone outputs
  Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  Supports up to 32-Bit/384 kHz playback
  Audio Features
  SupremeFX Shielding Technology
  Savitech SV3H712 AMP
  Gold-plated audio jacks
  Rear optical S/PDIF out port
  Premium audio capacitors
  Audio cover

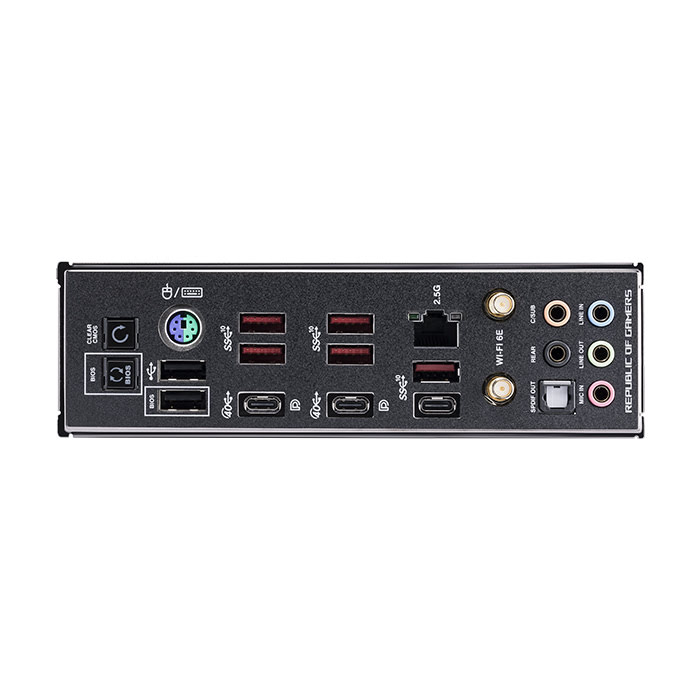

Back Panel I/O Ports 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
  6 x USB 3.2 Gen 2 port(s) (5 x Type-A + 1 x USB Type-C®)
  2 x USB 2.0 ports (2 x Type-A)
  1 x Wi-Fi Module
  1 x Intel® I226-V 2.5Gb Ethernet port
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  1 x 4-pin Chassis Fan header
  3 x 4-pin Full Speed Fan headers
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V Power connector
  1 x 6-pin PCIe Graphics Card connector
  Storage related
  1 x M.2 slots (Key M)
  1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
  Miscellaneous
  1 x 80 Light Bar jumper
  2 x Addressable Gen 2 headers
  1 x Alteration Mode Switch
  1 x Aura RGB header
  2 x BCLK button
  1 x FlexKey button
  1 x 10-1 pin Front Panel Audio header (AAFP)
  1 x LN2 Mode jumper
  1 x Osc sence header
  12 x ProbeIt Measurement Points
  1 x ReTry button
  1 x RSVD switch
  1 x RSVD header
  1 x Safe Boot button
  1 x Slow Mode switch
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
Special Features Extreme OC Kit
  FlexKey button
  LN2 Mode
  Probelt
  ReTry button
  Safe boot button
  Start button
  Slow Mode
  Extreme Engine Digi+
  10K Black Metallic Capacitors
  MicroFine Alloy Choke
  ASUS Q-Design
  M.2 Q-Latch
  PCIe Slot Q-Release
  Q-Code
  Q-Connector
  Q-DIMM
  Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  Q-Slot
  ASUS Thermal Solution
  M.2 heatsink backplate
  M.2 heatsink
  VRM heatsink design
  ASUS EZ DIY
  BIOS FlashBack™ button
  Clear CMOS button
  ProCool II
  Pre-mounted I/O shield
  SafeSlot
  SafeDIMM
  Aura Sync
  Aura RGB header(s)
  Addressable Gen 2 header(s)
  Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
  Support: up to 60W charging*
  Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
  * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
Software Features ROG Exclusive Software
  GameFirst VI
  ROG CPU-Z
  ROG True Voltician
  Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  Sonic Radar III
  DTS® Sound Unbound
  BullGuard Internet Security (1-year full version)
  ASUS Exclusive Software
  Armoury Crate
  AIDA64 Extreme (1 year full version)
  Aura Creator
  Aura Sync
  Fan Xpert 4 with AI Cooling II
  Power Saving
  Two-Way AI Noise Cancellation
  AI Suite 3
  TPU
  DIGI+ Power Control
  Turbo app
  PC Cleaner
  MyAsus
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  ASUS CrashFree BIOS 3
  ASUS EZ Flash 3
  ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
  1 x RGB extension cable
  2 x SATA 6Gb/s cables
  ROG GEN-Z.2 with Heatsink
  1 x ROG GEN-Z.2 with heatsink
  1 x M.2 pad for ROG GEN-Z.2
  2 x M.2 screw package for ROG GEN-Z.2
  ROG True Voltician
  1 x ROG True Voltician
  4 x cables for ROG True Voltician
  Additional Cooling Kit
  1 x Thermal pad for M.2
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Q-connector
  1 x M.2 Q-Latch package for M.2 backplate
  1 x ROG Graphics card holder
  1 x ROG key chain
  1 x ROG stickers
  1 x ROG thank you card
  1 x Rubber Package for M.2 backplate
Installation Media 1 x USB drive with utilities and drivers
Documentation 1 x User guide
Operating System Windows® 11 64-bit
Form Factor micro-ATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Code EAN

4711081894537

Référence produit

00401139

Référence constructeur

90MB1B80-M0EAY0
